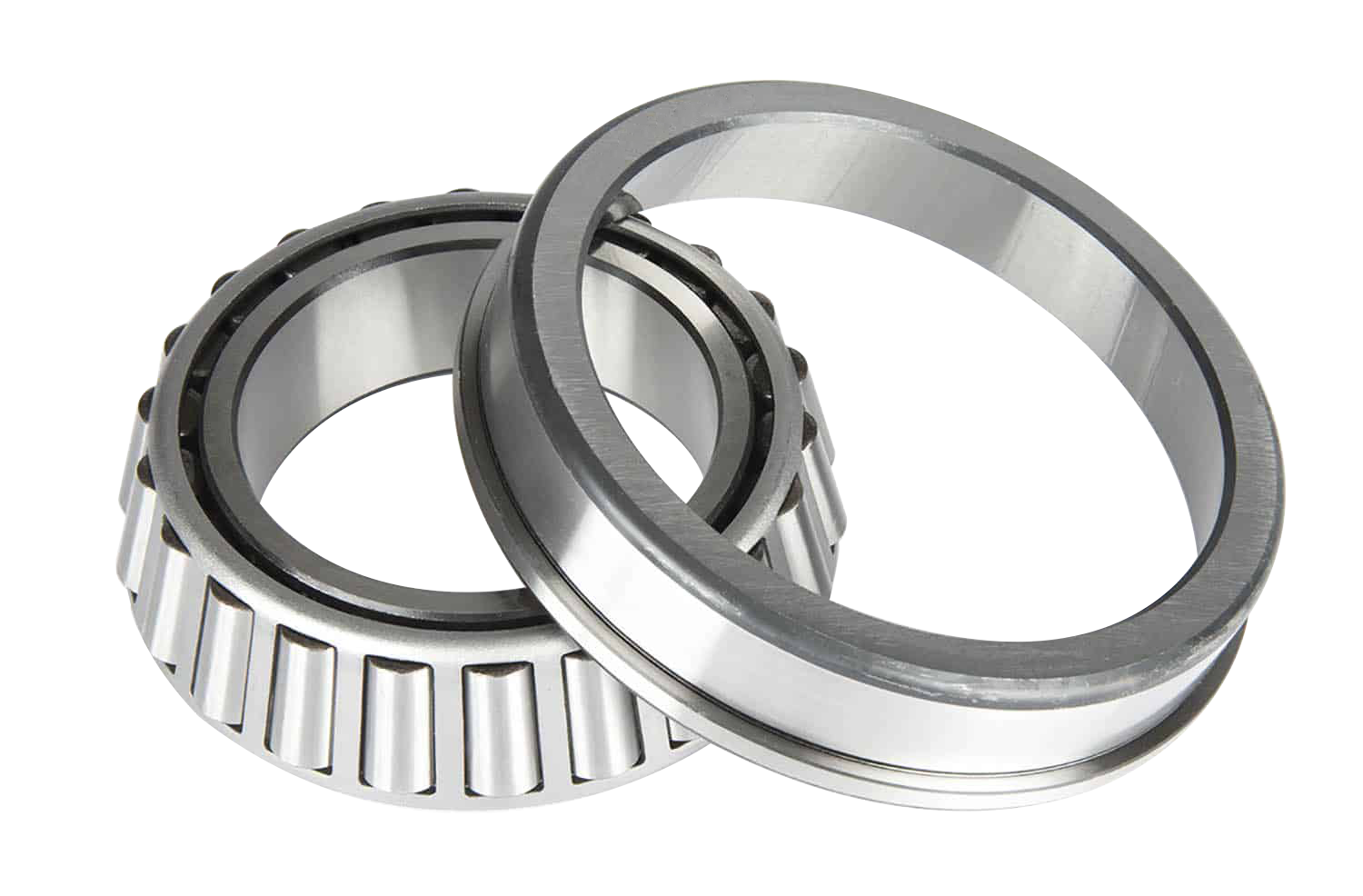

Image is for illustration purposes only.
3784/3720
The 3784/3720 is a tapered roller bearing set consisting of a cone (inner ring with rollers and cage) and cup (outer ring). Tapered roller bearings use conical raceways and tapered rollers to handle combined radial and thrust loads, with load capacity increasing with the contact angle.
This bearing type is widely used in automotive wheel hubs, truck axles, gearboxes, and heavy industrial equipment where both radial and axial loads must be supported. The set configuration ensures proper matching of cone and cup components for optimal performance.
Interchange / cross reference
A.O. SMITH/MAGNETEK/CENTURY/UNIVERSAL 514A.O. SMITH/MAGNETEK/CENTURY/UNIVERSAL F48D25A38ALLISC 11420ALLISC 210740ALLISC 250616ALLISC 3007156ALLISC 30071567AM 111E050146ARAMCO 1331644000AUSTIN 313190CASE 02879ABCHICAGO RAWHIDE BR3784CHRYSL 302075CHRYSL 38588EATON 14024
Cross-references are provided as a guide — verify dimensions and fit for your application.
For large orders ($2000+) please inquire by email.
Measurement Type
Imperial
Inner Diameter (ID)
2 in
Outside Diameter (OD)
3.6718 mm / 3.6718 in
Width
1.193 mm / 1.1875 in
Sealing
Open
Precision Class
ISO P0
Arrangement
One
Ball Material
Case Carburized Steel
Bearing Type
Tapered Roller Bearing
Other Features
Single Row | Tapered Roller Bearing
Component
Assembly
Number of Tapered Rows
1
Weight (kg)
0.8
Basic Number
3784/3720
UNSPSC
31171516
