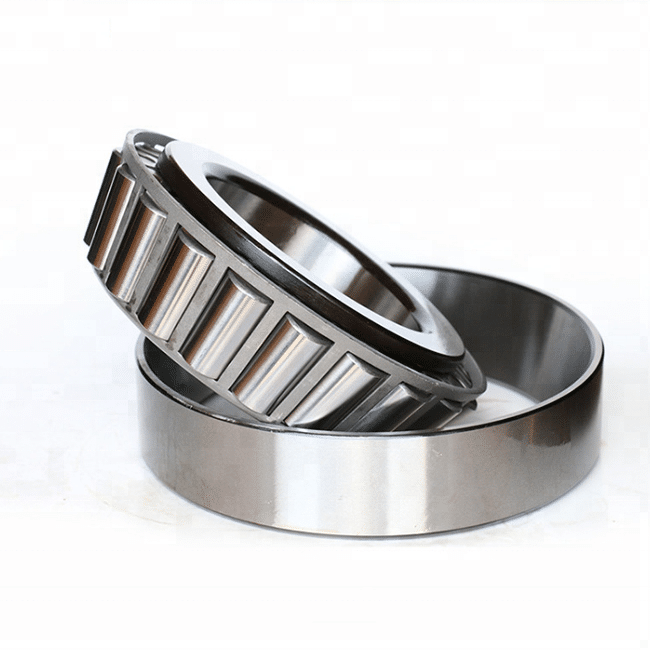

Image is for illustration purposes only.
What 32316J means
| Code | Position | Meaning |
|---|---|---|
3 |
Type | Tapered roller bearing (metric) |
2 |
Width series | Width series 2 |
3 |
Diameter series | Diameter series 3 (medium) |
16 |
Bore | Bore code 16 × 5 = 80 mm |
J |
Cage | Pressed steel cage |
Read from the ISO / ABMA numbering rules and the makers' published suffix conventions. Decode any other number with the bearing number decoder.
32316J specifications
| Specification | Metric | Inch | Basis |
|---|---|---|---|
| Bore (d) | 80 mm | 3.1496 in | ISO table for this designation, confirmed by supplier data |
| Outside diameter (D) | 170 mm | 6.6929 in | Maker's catalogue (PEER Bearing), confirmed by supplier data |
| Width, assembled (T) | 61.5 mm | 2.4213 in | Maker's catalogue (PEER Bearing), confirmed by supplier data |
| Bearing type | Tapered roller bearing (metric, ISO 355) | Stated by the designation | |
| Seals / shields | Open (no seals or shields) | Stated by the designation | |
| Cage | Pressed steel cage | Stated by the designation | |
| Tolerance class | Normal (ISO P0 / ABEC 1): no tolerance-class code | Stated by the designation | |
Equivalent to / interchanges with
| Brand | Part number | Basis |
|---|---|---|
| TIMKEN | 32316M | Timken Interchange Guide |
Equivalents are dimensional and closure-for-closure: same bore, outside diameter, width, seals or shields and internal clearance. Bearing interchange tables
32316J is a tapered roller bearing (metric, ISO 355), 80 mm bore × 170 mm OD × 61.5 mm wide (3.1496 × 6.6929 × 2.4213 in). It has a pressed steel cage. Published interchange tables list it as equivalent to TIMKEN 32316M.
The 32316J is a metric tapered roller bearing conforming to ISO 355 standards, featuring an 80 mm bore diameter. Tapered roller bearings use conical rolling elements to handle combined radial and axial loads simultaneously.
Bore/Inner Diameter Inch: 3.15
Bore/Inner Diameter mm: 80
