32312R
Tier-one manufacturer — brand supplied may vary ✓ Dimensions checked: ISO table and supplier data agreeCouldn't load pickup availability

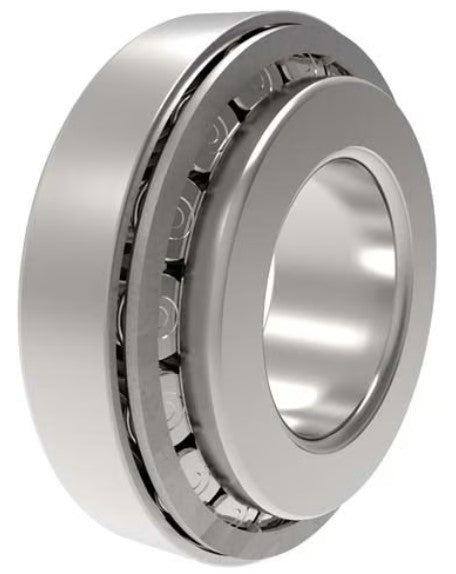

Image is for illustration purposes only.
What 32312R means
| Code | Position | Meaning |
|---|---|---|
3 |
Type | Tapered roller bearing (metric) |
2 |
Width series | Width series 2 |
3 |
Diameter series | Diameter series 3 (medium) |
12 |
Bore | Bore code 12 × 5 = 60 mm |
R |
Maker code | Manufacturer-specific code, not decoded here. Ask us if it matters for your application. |
Read from the ISO / ABMA numbering rules and the makers' published suffix conventions. Codes marked "not decoded" are maker-specific; ask us if one matters for your application. Decode any other number with the bearing number decoder.
32312R specifications
| Specification | Metric | Inch | Basis |
|---|---|---|---|
| Bore (d) | 60 mm | 2.3622 in | ISO table for this designation, confirmed by supplier data |
| Outside diameter (D) | 130 mm | 5.1181 in | Maker's catalogue (PEER Bearing), confirmed by supplier data |
| Width, assembled (T) | 48.5 mm | 1.9094 in | Maker's catalogue (PEER Bearing), confirmed by supplier data |
| Bearing type | Tapered roller bearing (metric, ISO 355) | Stated by the designation | |
| Seals / shields | Open | Supplier catalogue listing | |
Equivalent to / interchanges with
Also listed in manufacturer interchange tables (1): confirm suffix codes before ordering
- TIMKEN 32312 (Timken Interchange Guide)
These carry maker-specific suffix codes (cage, lubrication groove, design) that we have not matched one-for-one. The size is the same; check the codes against your application.
Equivalents are dimensional and closure-for-closure: same bore, outside diameter, width, seals or shields and internal clearance. Bearing interchange tables
32312R is a tapered roller bearing (metric, ISO 355), 60 mm bore × 130 mm OD × 48.5 mm wide (2.3622 × 5.1181 × 1.9094 in).
The 32312R is a metric tapered roller bearing from the ISO 355 standard series 323, featuring a 60 mm bore diameter. Tapered roller bearings use conical rolling elements to handle combined radial and axial loads simultaneously.
