25TAC62BSUC10PN7B
Tier-one manufacturer — brand supplied may vary ✓ Bore checked against the ISO tableRegular price
$121.95 USD
Regular price
Sale price
$121.95 USD
Unit price
per
Couldn't load pickup availability
Bore25 mm
0.9843 in
Outside dia.62 mm
2.4409 in
Width15 mm
0.5906 in
TypeAngular Contact Spindle Bearing
SealingOpen
Flat-rate shipping — calculated by weight at checkout

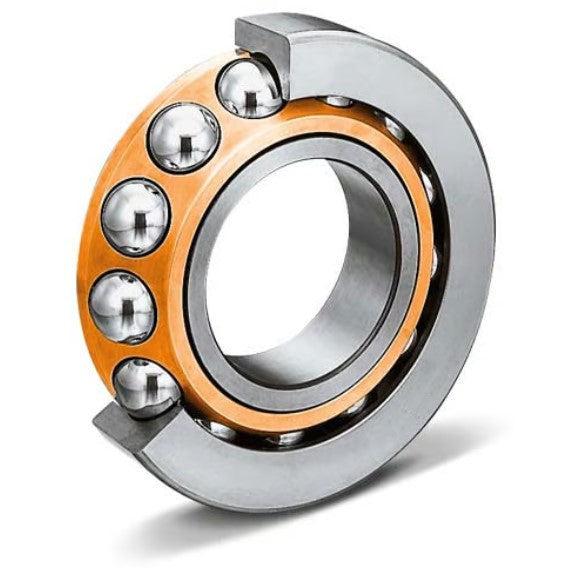

Image is for illustration purposes only.
25TAC62BSUC10PN7B specifications
| Specification | Metric | Inch | Basis |
|---|---|---|---|
| Bore (d) | 25 mm | 0.9843 in | Two independent catalogue sources agree |
| Outside diameter (D) | 62 mm | 2.4409 in | Supplier catalogue listing |
| Width (B) | 15 mm | 0.5906 in | Supplier catalogue listing |
| Bearing type | Angular Contact Spindle Bearing | Supplier catalogue listing | |
| Seals / shields | Open | Supplier catalogue listing | |
| Cage | Polyamide | Supplier catalogue listing | |
25TAC62BSUC10PN7B is an angular Contact Spindle Bearing, 25 mm bore × 62 mm OD × 15 mm wide (0.9843 × 2.4409 × 0.5906 in).
The 25TAC62BSUC10PN7B is a precision thrust ball bearing designed to support axial loads in one direction. This bearing features a compact design with a 25mm bore diameter and 62mm outer diameter, suitable for applications requiring precise axial positioning.
25TAC62BSUC10PN7B Metric Ball Screw Support Bearing Single
Measurement Type
Metric
Inner Diameter (ID)
25 mm
Outside Diameter (OD)
62 mm
Width
15 mm
Sealing
Open
Precision Class
ABEC 7 | ISO P4
Cage
Polyamide
Bearing Type
Angular Contact Spindle Bearing
Other Features
Single Row | Angular Contact Thrust Bearing | Ball Screw Support | High Capacity | Bore and OD are Exclusive All Others are ISO 4
Component
Assembly
Weight (kg)
0.252
Basic Number
25TAC62
UNSPSC
31171552
