23124EX1W33C3

Tier-one manufacturer — brand supplied may vary ✓ Bore checked against the ISO table
$345.09 USD
$345.09 USD
Sale Sold out
Bore120 mm 4.7244 in
Outside dia.200 mm 7.874 in
Width62 mm 2.4409 in
TypeSpherical roller bearing
SealingOpen
ClearanceC3
Flat-rate shipping — calculated by weight at checkout

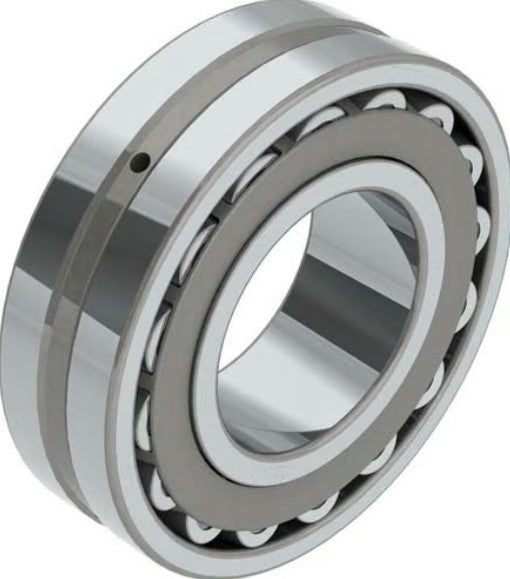

  • 23124EX1W33C3 Spherical Bearings
1 1

Image is for illustration purposes only.

What 23124EX1W33C3 means

CodePositionMeaning
2 Type Spherical roller bearing
3 Width series Width series 3
1 Diameter series Diameter series 1 (extra light)
24 Bore Bore code 24 × 5 = 120 mm
EX1 Maker code Manufacturer-specific code, not decoded here. Ask us if it matters for your application.
W33 Lubrication Lubrication groove and three holes in the outer ring
C3 Internal clearance C3: radial internal clearance greater than Normal

Read from the ISO / ABMA numbering rules and the makers' published suffix conventions. Codes marked "not decoded" are maker-specific; ask us if one matters for your application. Decode any other number with the bearing number decoder.

23124EX1W33C3 specifications

Specification Metric Inch Basis
Bore (d) 120 mm 4.7244 in ISO table for this designation, confirmed by supplier data
Outside diameter (D) 200 mm 7.874 in Supplier catalogue listing
Width (B) 62 mm 2.4409 in Supplier catalogue listing
Bearing type Spherical roller bearing Stated by the designation
Seals / shields Open Supplier catalogue listing
Internal clearance C3 (greater than Normal) Stated by the designation
Lubrication feature Lubrication groove and three holes in the outer ring Stated by the designation

23124EX1W33C3 is a spherical roller bearing, 120 mm bore × 200 mm OD × 62 mm wide (4.7244 × 7.874 × 2.4409 in). It has C3 internal clearance and a lubrication groove and three holes in the outer ring.

23124EX1W33C3 Spherical Roller Bearing
