Image is for illustration purposes only.

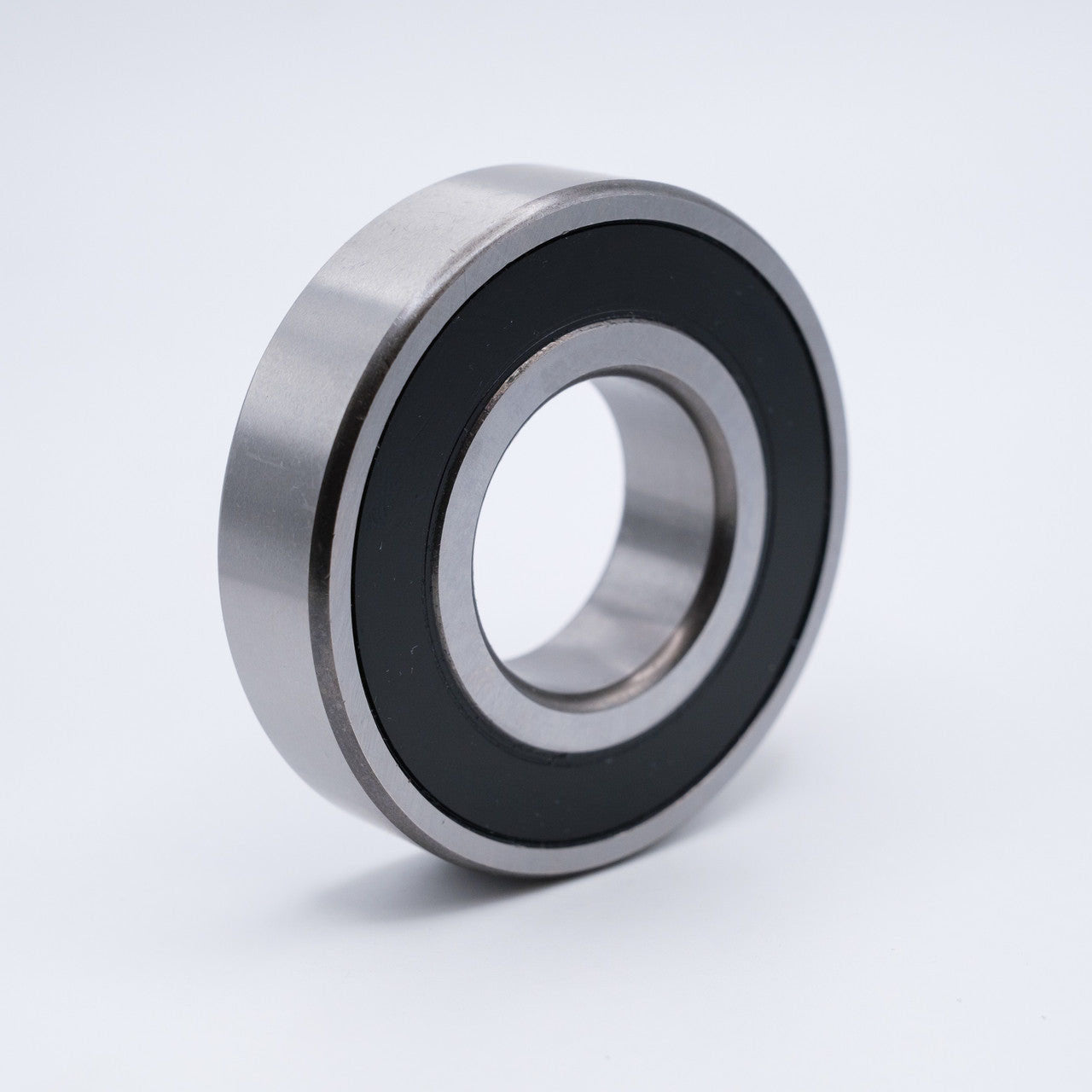

1620-2RS
The 1620-2RS is a deep groove ball bearing from the 16 series, featuring a 100mm bore diameter and contact rubber seals on both sides. The double seal configuration (2RS) provides protection against contaminant ingress while retaining lubrication for extended service life.
Deep groove ball bearings are versatile radial bearings suitable for applications requiring high-speed operation and moderate radial and axial loads. Common applications include electric motors, gearboxes, pumps, conveyors, and general industrial machinery where reliable rotational support is needed.
1620 2RS 1600 Series Ball Bearing
For large orders ($2000+) please inquire by email.
Measurement Type
Imperial
Inner Diameter (ID)
100 mm / 7/16 in
Outside Diameter (OD)
1.375 mm / 1 3/8 in
Width
0.4375 mm / 7/16 in
Sealing
Double Sealed
Precision Class
ABEC 1 | ISO P0
Series
16
Bearing Type
Deep groove ball bearing
Other Features
Single Row | Deep Groove Ball Bearing | Rubber Seals
Component
Assembly
Weight (kg)
0.05
Basic Number
1620
UNSPSC
31171504
