16003-2RS

Tier-one manufacturer — brand supplied may vary ✓ Dimensions checked: ISO table and supplier data agree
$9.80 USD
$9.80 USD
Sale Sold out
Bore17 mm 0.6693 in
Outside dia.35 mm 1.378 in
Width8 mm 0.315 in
TypeDeep groove ball bearing
SealingContact rubber seals, both sides
ClearanceNormal
Flat-rate shipping — calculated by weight at checkout
1 1

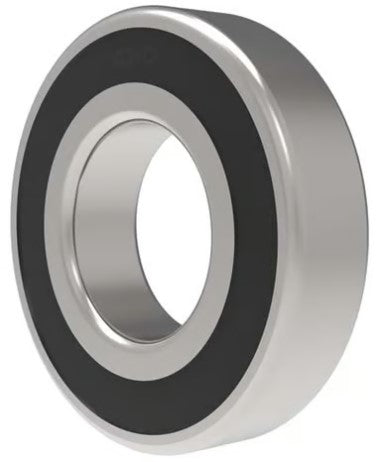

Image is for illustration purposes only.

What 16003-2RS means

CodePositionMeaning
160 Series Series 160: deep groove ball bearing, narrower than the 60-series equivalent of the same bore
03 Bore Bore code 03 = 17 mm (codes 00, 01, 02 and 03 are fixed at 10, 12, 15 and 17 mm)
2RS Closure Contact rubber seals, both sides

Read from the ISO / ABMA numbering rules and the makers' published suffix conventions. Decode any other number with the bearing number decoder.

16003-2RS specifications

Specification Metric Inch Basis
Bore (d) 17 mm 0.6693 in ISO table for this designation, confirmed by supplier data
Outside diameter (D) 35 mm 1.378 in Maker's catalogue (PEER Bearing), confirmed by supplier data
Width (B) 8 mm 0.315 in Maker's catalogue (PEER Bearing), confirmed by supplier data
Bearing type Deep groove ball bearing Stated by the designation
Seals / shields Contact rubber seals, both sides Stated by the designation
Internal clearance Normal (CN): no clearance code in the designation Stated by the designation
Tolerance class Normal (ISO P0 / ABEC 1): no tolerance-class code Stated by the designation

16003-2RS is a deep groove ball bearing, 17 mm bore × 35 mm OD × 8 mm wide (0.6693 × 1.378 × 0.315 in). It has rubber contact seals on both sides.

The 16003-2RS is a deep groove ball bearing from the 16000 series, featuring a 17mm bore diameter and contact rubber seals on both sides. The 2RS seal design provides protection against contaminants while retaining lubrication for extended service life.

16003 2RS 16000 Series Ball Bearing
