15126/15245
Tier-one manufacturer — brand supplied may varyCouldn't load pickup availability

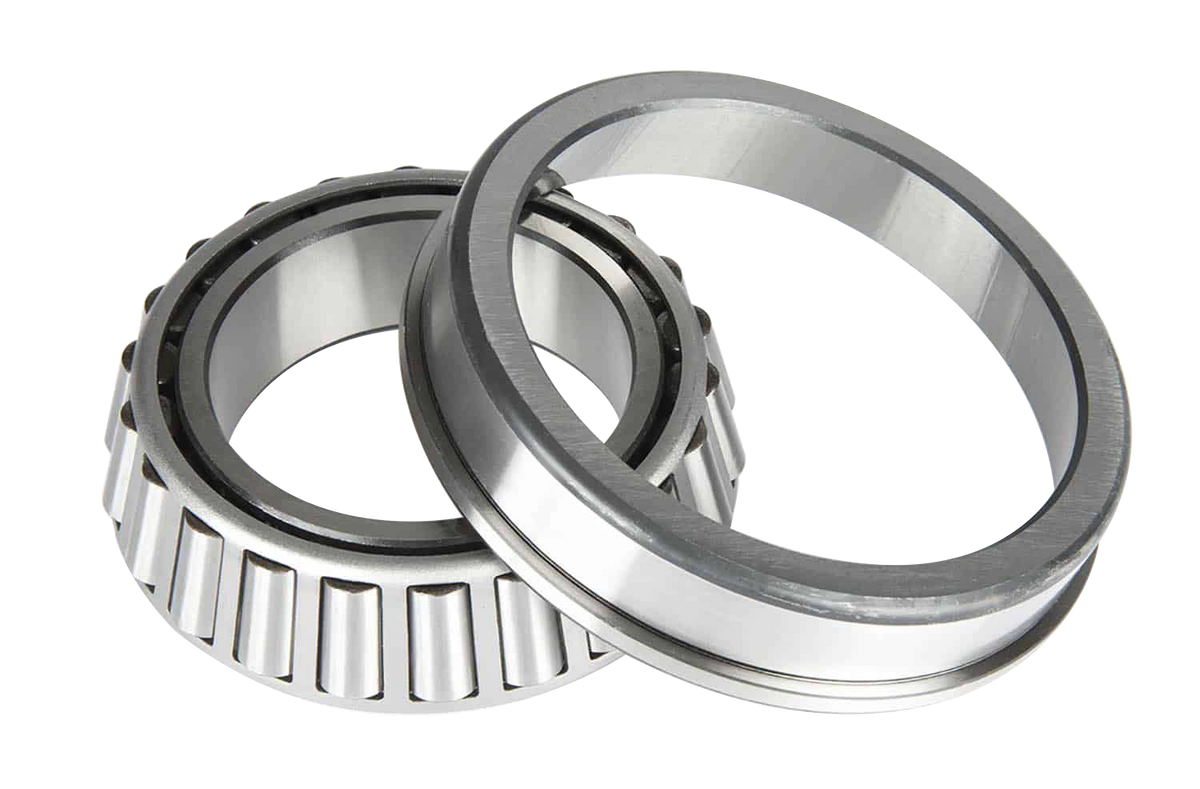

Image is for illustration purposes only.
The 15126/15245 is a tapered roller bearing set consisting of a cone (inner ring with rollers and cage) and cup (outer ring). This single row design uses tapered raceways to handle combined radial and thrust loads, with load capacity increasing with the contact angle.
Tapered roller bearing sets are commonly used in automotive wheel hubs, transmissions, differentials, and industrial gearboxes where both radial and axial loads must be supported. They are typically mounted in opposed pairs to handle thrust loads in both directions.
Interchange / cross reference
Equivalent — published by the manufacturer as an interchange.
Cross-references are provided as a guide — verify dimensions and fit for your application.
15126/15245
Bore/Inner Diameter Inch: 1.25
Bore/Inner Diameter mm: 31.75
Outside Diameter Inch: 2.4409
Outside Diameter mm: 62.0
Width Inch: 0.75
Width mm: 19.05
