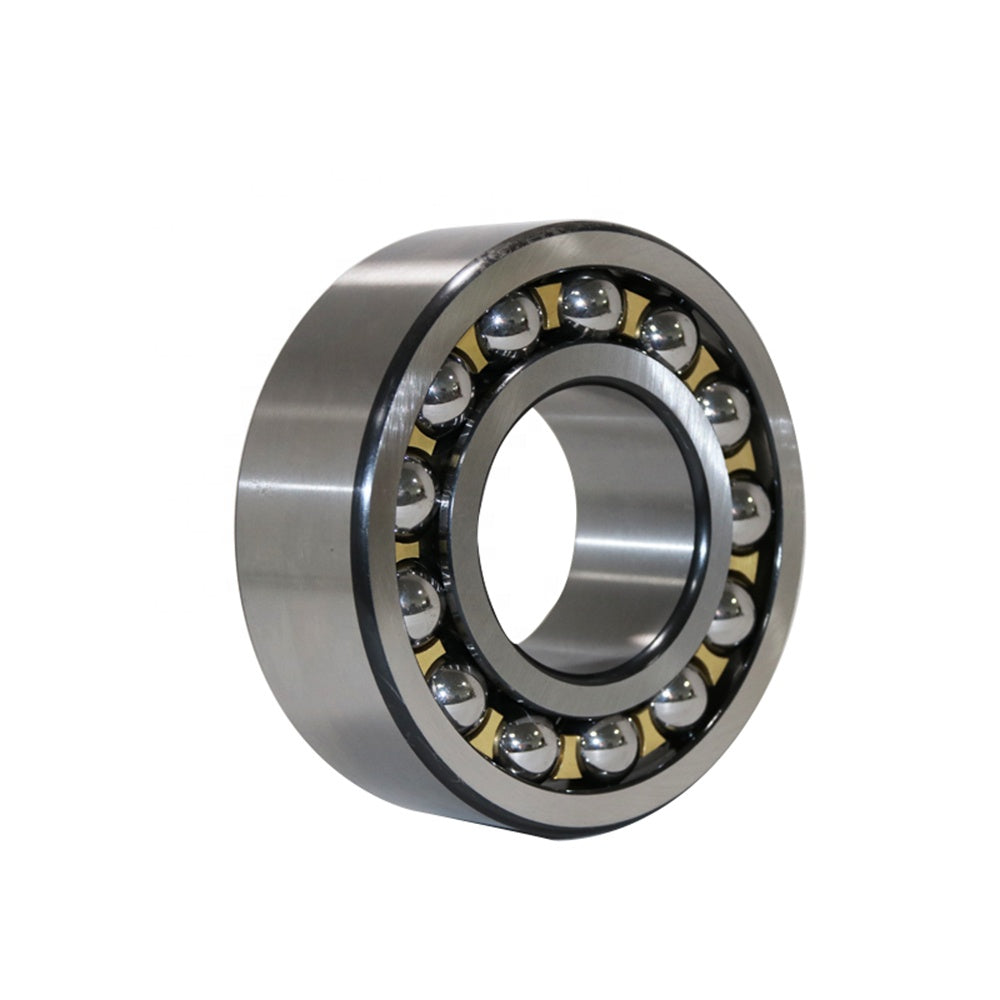

Image is for illustration purposes only.
The 1213 is a self-aligning ball bearing with a 65 mm bore diameter from the 12 series. Self-aligning ball bearings feature a double row of balls running on a spherical outer ring raceway, allowing the bearing to accommodate angular misalignment between the shaft and housing.
These bearings are commonly used in applications where shaft deflection or misalignment is expected, including agricultural equipment, conveyor systems, woodworking machinery, and general industrial equipment where mounting precision cannot be guaranteed. The self-aligning design compensates for installation errors and shaft deflection during operation.
Interchange / cross reference
Cross-references are provided as a guide — verify dimensions and fit for your application.
1213
Model Number: 1213
Bore/Inner Diameter Inch: 2.5591
Bore/Inner Diameter mm: 65
Outside Diameter Inch: 4.7244
Outside Diameter mm: 120
Width Inch: 0.9055
For large orders ($2000+) please inquire by email.
