1206KTN
Tier-one manufacturer — brand supplied may vary ✓ Bore checked against the ISO tableRegular price
$12.13 USD
Regular price
Sale price
$12.13 USD
Unit price
per
Couldn't load pickup availability
Bore30 mm
1.1811 in
Outside dia.62 mm
2.4409 in
Width16 mm
0.6299 in
TypeSelf-aligning ball bearing
SealingOpen
ClearanceNormal
Ships from US partner stock — flat-rate shipping, calculated by weight at checkout

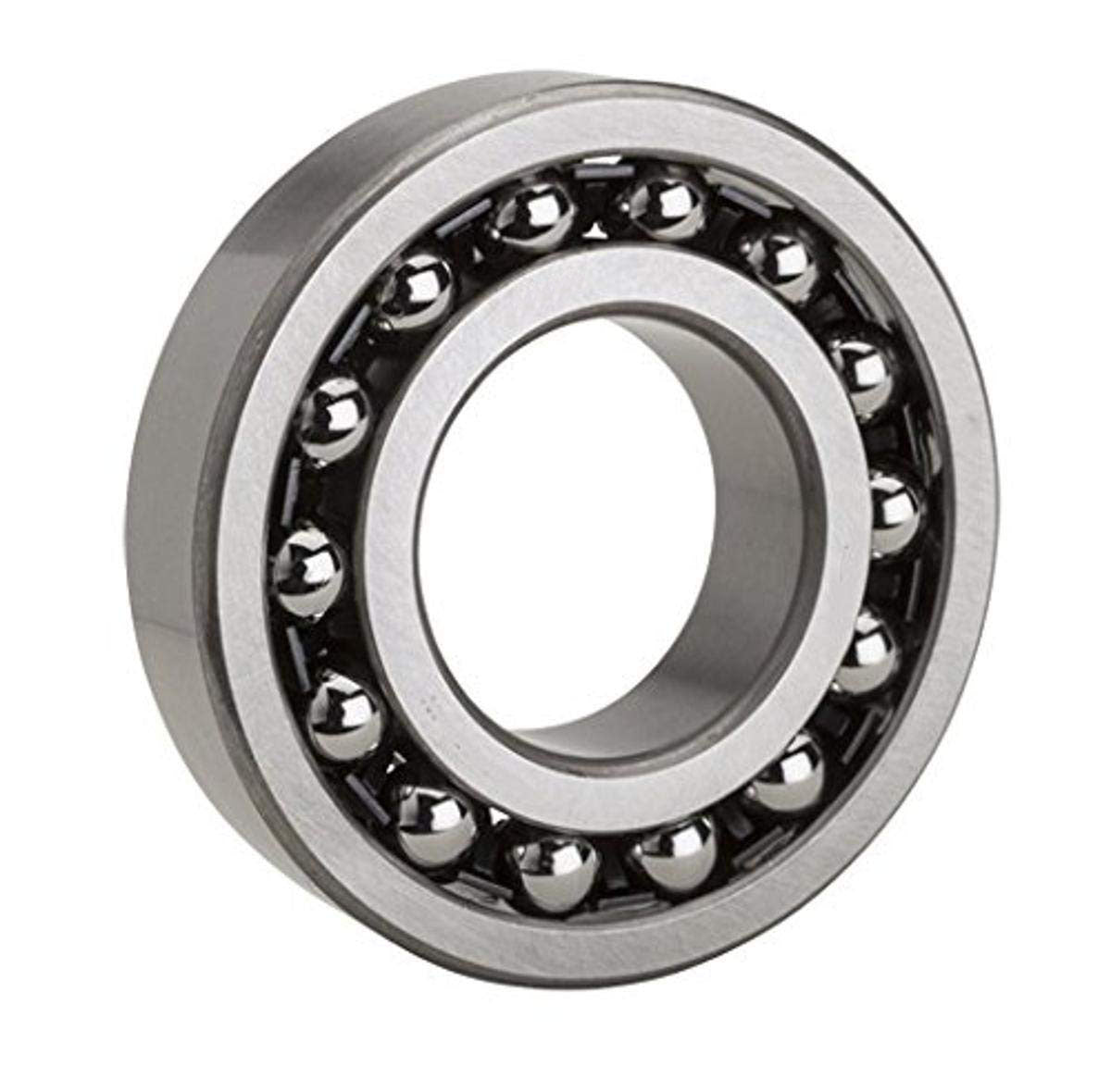

Image is for illustration purposes only.
What 1206KTN means
| Code | Position | Meaning |
|---|---|---|
1 |
Type | Self-aligning ball bearing |
2 |
Diameter series | Diameter series 2 (light) |
06 |
Bore | Bore code 06 × 5 = 30 mm |
K |
Bore type | Tapered bore, taper 1:12 (mounts on an adapter or withdrawal sleeve) |
TN |
Cage | Polyamide cage |
Read from the ISO / ABMA numbering rules and the makers' published suffix conventions. Decode any other number with the bearing number decoder.
1206KTN specifications
| Specification | Metric | Inch | Basis |
|---|---|---|---|
| Bore (d) | 30 mm | 1.1811 in | ISO table for this designation, confirmed by supplier data |
| Outside diameter (D) | 62 mm | 2.4409 in | Supplier catalogue listing |
| Width (B) | 16 mm | 0.6299 in | Supplier catalogue listing |
| Bearing type | Self-aligning ball bearing | Stated by the designation | |
| Seals / shields | Open (no seals or shields) | Stated by the designation | |
| Internal clearance | Normal (CN): no clearance code in the designation | Stated by the designation | |
| Bore | Tapered bore (1:12) | Stated by the designation | |
| Cage | Polyamide cage | Stated by the designation | |
| Tolerance class | Normal (ISO P0 / ABEC 1): no tolerance-class code | Stated by the designation | |
1206KTN is a self-aligning ball bearing, 30 mm bore × 62 mm OD × 16 mm wide (1.1811 × 2.4409 × 0.6299 in). It has a tapered bore (1:12) and a polyamide cage.
The 1206KTN is a self-aligning ball bearing from the 1200 series, featuring a 30mm tapered bore (1:12 taper) and a polyamide cage. Self-aligning ball bearings have two rows of balls running on a spherical outer ring raceway, allowing the bearing to accommodate angular misalignment between the shaft and housing.
Measurement Type
Metric
Inner Diameter (ID)
30 mm
Outside Diameter (OD)
62 mm
Width
16 mm
Sealing
Open
Precision Class
ISO P0
Cage
Polyamide
Series
12
Bearing Type
Self-aligning ball bearing
Other Features
Double Row | Self Aligning Ball Bearing | 1:12 Tapered Bore
Component
Assembly
Weight (kg)
0.217
Basic Number
1206
UNSPSC
31171532
